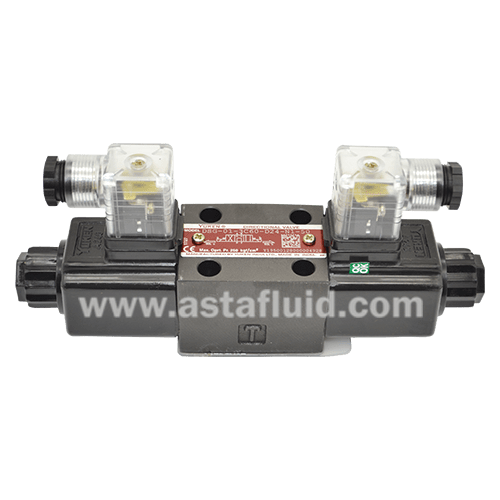

DSG01-3C3-A240-N1-50, Yuken

Name: DSG01-3C3-A240-N1-50 Make: YUKEN INDIA LTMITED Description: High Pressure & High Flow Rate, Low Pressure Drop, Compact & Small Mass, Shockless type available, Stable Operation, IP65-equivalent high dust- and water-proof, Usable in  products of various standards Weight: 2.2 Working Pressure(BAR): 315 Flow(LPM):  63 Coil Voltage:   A240

1/8 Solenoid Operated Directional Valves, DSG-01 Series

These are Solenoid Operated Directional Valves of high pressure, high  flow and low pressure drop, the features of which can be materialized  by employing a powerful wet type solenoid and the rational flow channel design.

• High Pressure & High Flow Rate

  In comparison to our existing lines, both the pressure and flow of  these valves are much increased.

1.   Max. Operating Pressure: approx. 10 % increased [31.5→35 MPa (4570 →5080 PSI)]
2. Max. T-Line Back Pressure: approx. 30 % increased [16→21 MPa (2320 →3050 PSI)]
3. Max. Flow Rate: approx. 60 % increased [63→100 L/min (16.64 →26.42 U.S.GPM)]

• Low Pressure Drop

  The pressure drop of these valves is reduced by 10 % from 1.0 to 0.9 MPa (145 to 131 PSI), in comparison to our existing lines*; the valves effectively reduce the energy consumption of the unit. {* At Flow Rate: 60 L/min (15.9 U.S.GPM), Spool Type: 3C2 (P→A)}

• Compact & Small Mass

  Despite of high pressure, high flow and low pressure drop, these valve bodies are compact and lightweight with DC double solenoids; the overall length and mass are reduced from 210 to 205mm (8.26 to 8.07 inch) and from 2.2 to 1.85 kg (4.85 to 4.08 lbs), respectively

•  Shockless type available

  In addition to the standard valves for high pressure and high flow, a shockless type capable of minimizing noise and vibration in piping during spool changeover is also available. Stable Operation

• IP65-equivalent high dust- and water-proof

  These valves demonstrate excellent dust- and water-proof characteristics, in compliance with I. E. C. Pub. 529. IP65 and JIS C 0920 IP65 (dust- and jet-proof type).

• Usable in products of various standard

  These standard valves are CE certified for installation in equipment overseas. UL/CSA certified products are also available.
