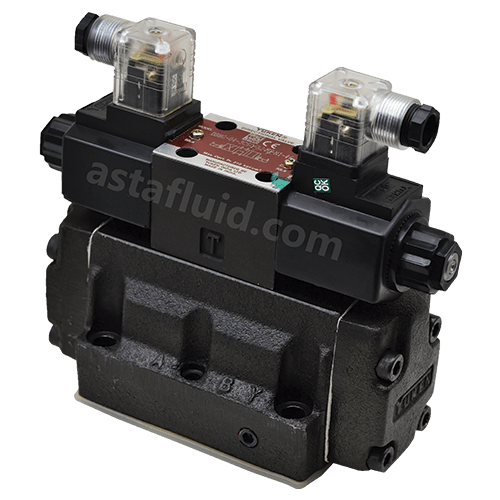

DSHG04-3C2-D24-N1-50, Yuken

Name: Hydraulic Direction Control Valve, DSHG04-3C2-D24-N1-50-Yuken India Ltd Model: DSHG04-3C2-D24-N1-50 Make: YUKEN INDIA LTMITED Description: These valves are composed of a solenoid operated pilot valve and a pilot operated slave valve. When a solenoid is energized the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit, High Pressure High Flow- High pressure [31.5 MPa (4570 PSI)] along which high flow means compact system design. Lower Pressure Drop- System energy saving increased as pressure drop of each valve has been greatly reduced. Weight: 8.8 KG Working Pressure(BAR): 315 Flow(LPM): 300 Coil Voltage: D24

Solenoid Controlled Pilot Operated Directional Valves

These valves are composed of a solenoid operated pilot valves and a pilot operated slave valve. When a solenoid is energized the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit. High Pressure High Flow High pressure [315 Kgf/cm2] along with high flow means compact system design. Lower pressure Drop System energy saving increased as pressure drop of each valve has greatly reduced.

Specifications

• Maximum flow indicates a ceiling flow. As the ceiling flow depends on the type of spool and operating condition.
• Pilot pressure of internal pilot drain models must always exceed tank line back pressure by a minimum required pilot pressure.
