Description: High efficiency
Delivery Time: 6-8 Weeks
- Under the conditions of pressure 16 MPa (2320 PSI) and speed 1800 r/min, the volumetric efficiency is over 98% and the overall efficiency is over 90%. Low noise level
- In the "A16" pump, the noise level is as low as 57.3 dB(A) [at the full cut-off pressure 21 MPa (3050 PSI) with speed 1500 r/min one metre (3.3 ft.) horizontally away from pump head cover.] Accomplishment of energy-saving.
- Because the overall efficiency is high and the cut-off characteristics is sharp, thus the input power may be saved.

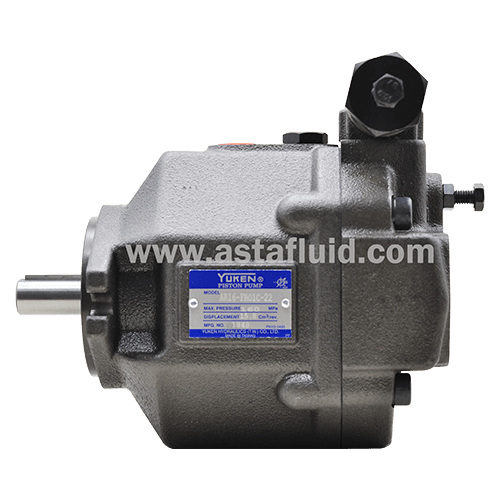

- Model: AR22-F-R-01-C-20
- Make: Yuken Hydraulics (T.W.) CO., LTD.
| Working Pressure | 160 BAR |
| Flow | 22 CC3/REV |
| Shaft Dia | 19 MM |
| Port Size Suction | 21 MM |
| Port Size Discharge | 3/4 R/C |
| Shaft Speed Min | 600 RPM |
| Shaft Speed Max | 1800 RPM |
| Mounting | 2 Bolt |
| Rotation | Clockwise |
| Country of Origin | Taiwan |
