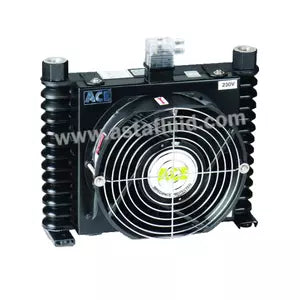

Model: AL 608
Make: ACE
AL Series of air-cooled are economical heat exchangers/oil coolers that can be used in applications where there is a steady oil flow of up to 10 LPM (Max pressure 6 bar) with no or little pulsation.AL–608 100% equivalent to AMC 217. These are small yet very efficient hydraulic oil coolers. AL series oil coolers are designed to be installed in drain line of variable displacement pumps.
Typical applications include CNC & VMC machines, CNC & VMC Clamping fixtures & other hydraulic power packs with variable displacement pumps.
Technical Specifications:
Get here complete range of Heat Exchangers and Air Cooled Oil Coolers.
| Oil Flow (LPM) | 1-10 |
| Fan Size Inch (MM) | 6" , (150) |
| No Of Fans | 1 |
| Phase | 1P |
| Voltage V | 230 |
| Frequency Hz | 50 |
| Current A | 0.25 |
| Noise dBA | 54 |
| Country of Origin | India |
