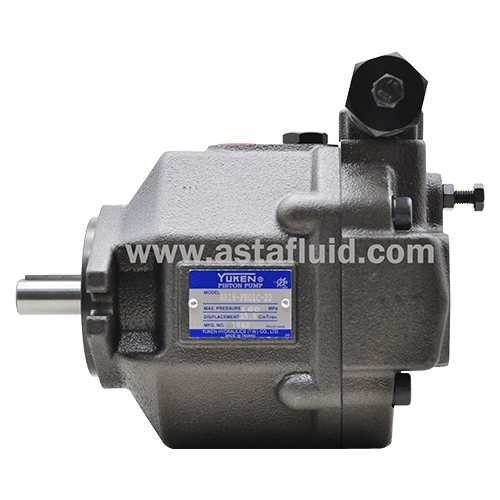

A37-F-R-01-C-K-32- Make: Yuken

A37-F-R-01-C-K-32- Make: Yuken

Regular price
Regular price Sale price ₹. 111,600.00
Sale Sold out
Category : Axial Piston Pump

Brand : astafluid

View full details
Description:  High efficiency
  • Under the conditions of pressure 16 MPa (2320 PSI) and speed 1800 r/min, the volumetric efficiency is over 98% and the overall efficiency is over 90%. Low noise level
  • In the "A16" pump, the noise level is as low as 57.3 dB(A) [at the full cut-off pressure 21 MPa (3050 PSI) with speed 1500 r/min one metre (3.3 ft.) horizontally away from pump head cover.] Accomplishment of energy-saving.
  • Because the overall efficiency is high and the cut-off characteristics is sharp, thus the input power may be saved.

  • Model: A37-F-R-01-C-K-32
  • Make: Yuken Hydraulics (T.W.) CO., LTD.
  Technical Specifications
Working Pressure 160 BAR
Flow 37 CC3/REV
Shaft Dia 22.2 MM
Port Size Suction 32 MM
Port Size Discharge 32 MM
Shaft Speed Min 600 RPM
Shaft Speed Max 1800 RPM
Mounting 2 Bolt
Rotation Clockwise
Country of Origin Taiwan
Delivery Time:  6-8 Weeks
